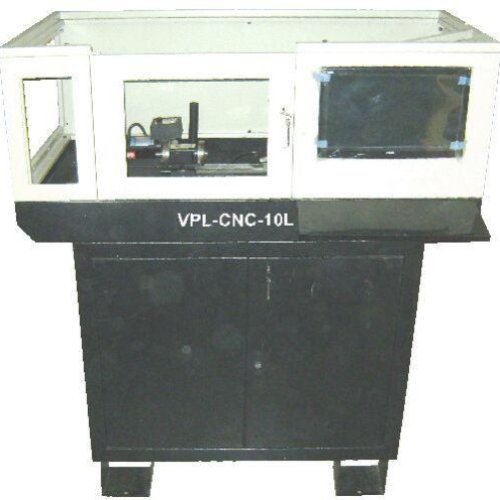

CNC Lathe System (VPL-CNC-10L)

CNC Lathe System (VPL-CNC-10L)

Product Details

Swing Over Carriage 2.5″ (65 mm)
Distance Between Centers 17.00″ (430 mm)
Hole through spindle .405″ (10 mm)
Spindle nose taper #1 Morse
Protractor graduations 0° to 45° by 5°
Depth overall 34″ (864 mm)
Height overall 58″ (1473 mm)
Spindle speed range 70-2800 RPM continuously variable by electronic speed control
Rapid travel speed, X and Z 22 inches/min

Preferred Buyer From

Location Worldwide

  • The system installed in a metallic enclosure with 5′ height, openable front door, acrylic front and side cover and display panel.

  • It has coolant system with removable collector.

  • It has mechanical storage system on the bottom for Computer system, Controller, UPS and for Electrical  wiring.

  • The system supplied with PC with Intel Pentium-IV CPU @ 2.4 GHz, 512MB RAM, 52X DVD Writer, Optical Mouse, 15” TFT  Monitor & Keyboard.
