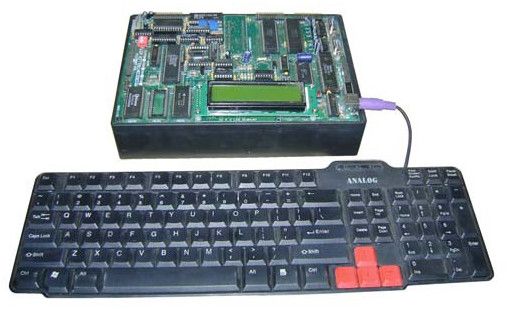

8086 Microprocessor Kit With Accessories/Peripherals

SPECIFICATIONS

 Compatible with 8088 Microprocessor (8 bit)

 Provision to add 8087 Co- processor & 8089 I/O Processor.

 256 KB of CMOS RAM using 62256

 512 KB of EPROM loaded with monitor expandable further using 27512.

 Battery Backup for RAM.

 Total on-Board memory expansion to 384 KB.

 72 programmable I/O lines through 8255.

 Real time Clock interfaces.

 Three 16-bit Timer/Counter through 8253.

 RS 232C serial interface through 8251.

 USB Interface for PC Interface

 8 different level of interrupt through 8259.

 1 Mask able interrupts.

 8 non-maskable interrupt

 On-board A/D Converter

 On-board D/A Converter

 On-board Relay having 2 NO and NC contacts.

 On-board Opto Isolated input

 On-board 8 Digital inputs

 On-board 8 Digital Outputs

 On-board Temperature Sensor

 On-board Traffic light controller

 On-board Printer Interface

 20*2 LCD Display (40x2 optional)

 104 Keys IBM Compatible Key Board (USB)

 Two modes of Commands key board mode and serial mode.

 All address data and control lines available at FRC connector as per multi-Bus.

 Facility for Down/Up loading files from /to PC.

 With Built in Power Supply.

 8251 study card USART 8279 study card 8255 study card

 SRAM and DRAM interface card with converter card DMA Controller
